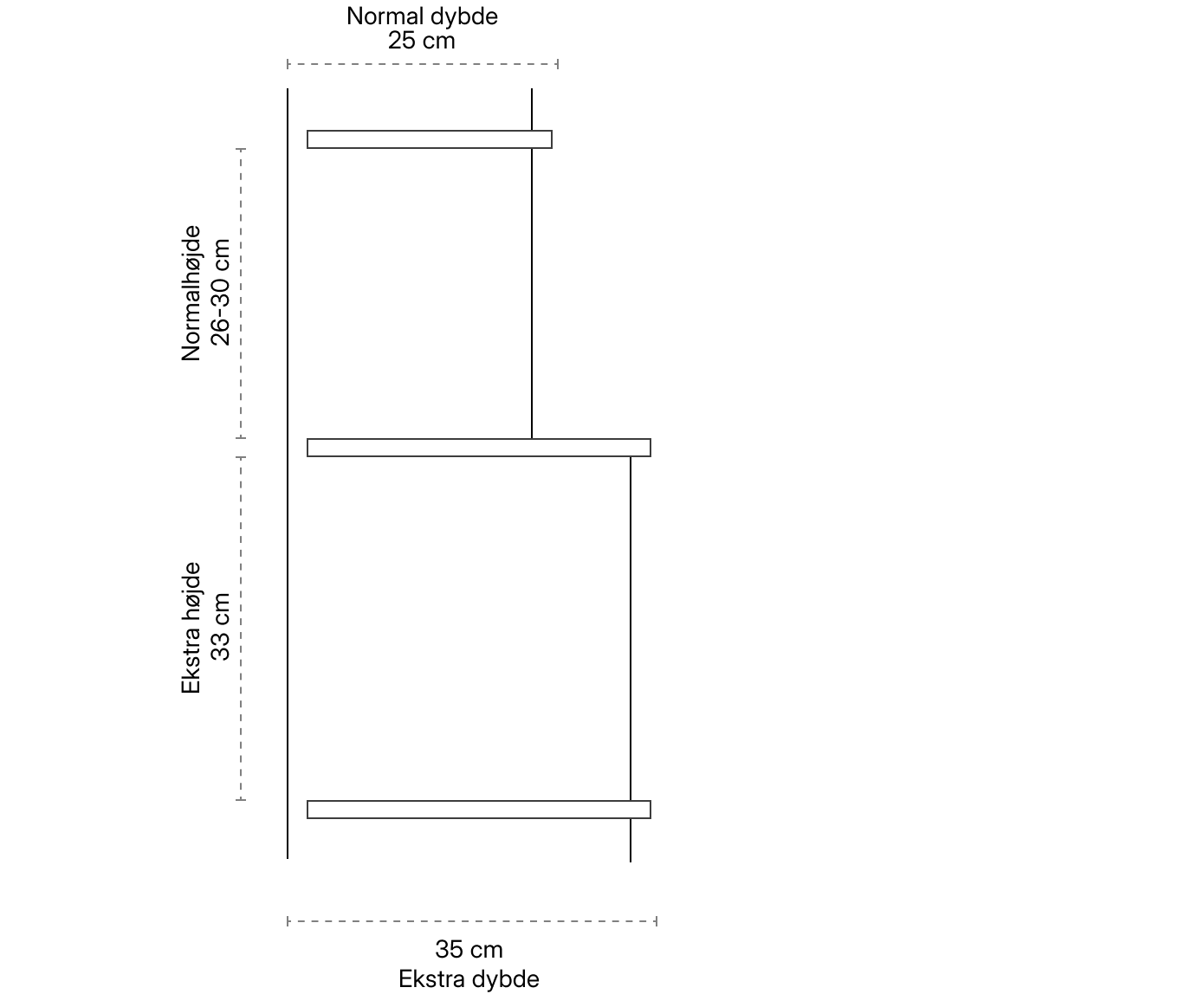

Standard height: 25–30 cm (adjustable to the wall).
Extra height: 33 cm (fixed).
Standard depth: 25 cm (fixed).
Extra depth: 35 cm (fixed).
Turntable shelf: 35–45 cm (flexible).
Standard depth: 25 cm (fixed).
Extra depth: 35 cm (fixed).

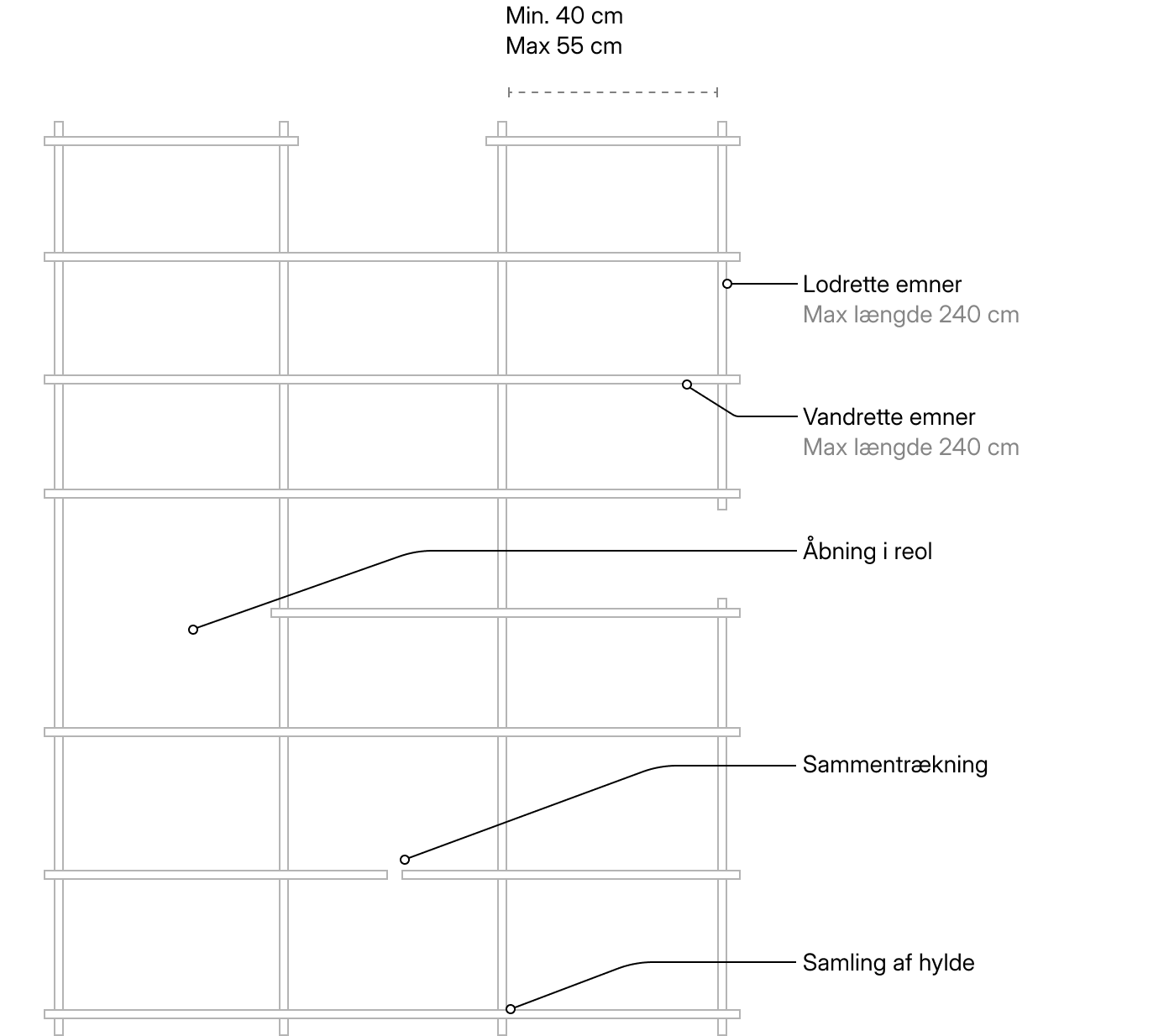

Width between verticals: 40–55 cm (flexible to fit the wall).
No component, whether vertical or horizontal, can be longer than 240 cm. This is primarily due to the available material dimensions.
Horizontal shelves can be pulled towards the centre of the room.
Minimum distance: 4 cm.
The shelf is joined within a slot, concealed by a vertical component. The joint will be visible in the end grain and on the overhang.
With oak, the veneer grain cannot be optimised.
This joint is only used in the bottom row when it is more than 240 cm long.
Reolreol is characterised by its small “pegs”.The pegs make it possible to manufacture and install the shelving system efficiently.

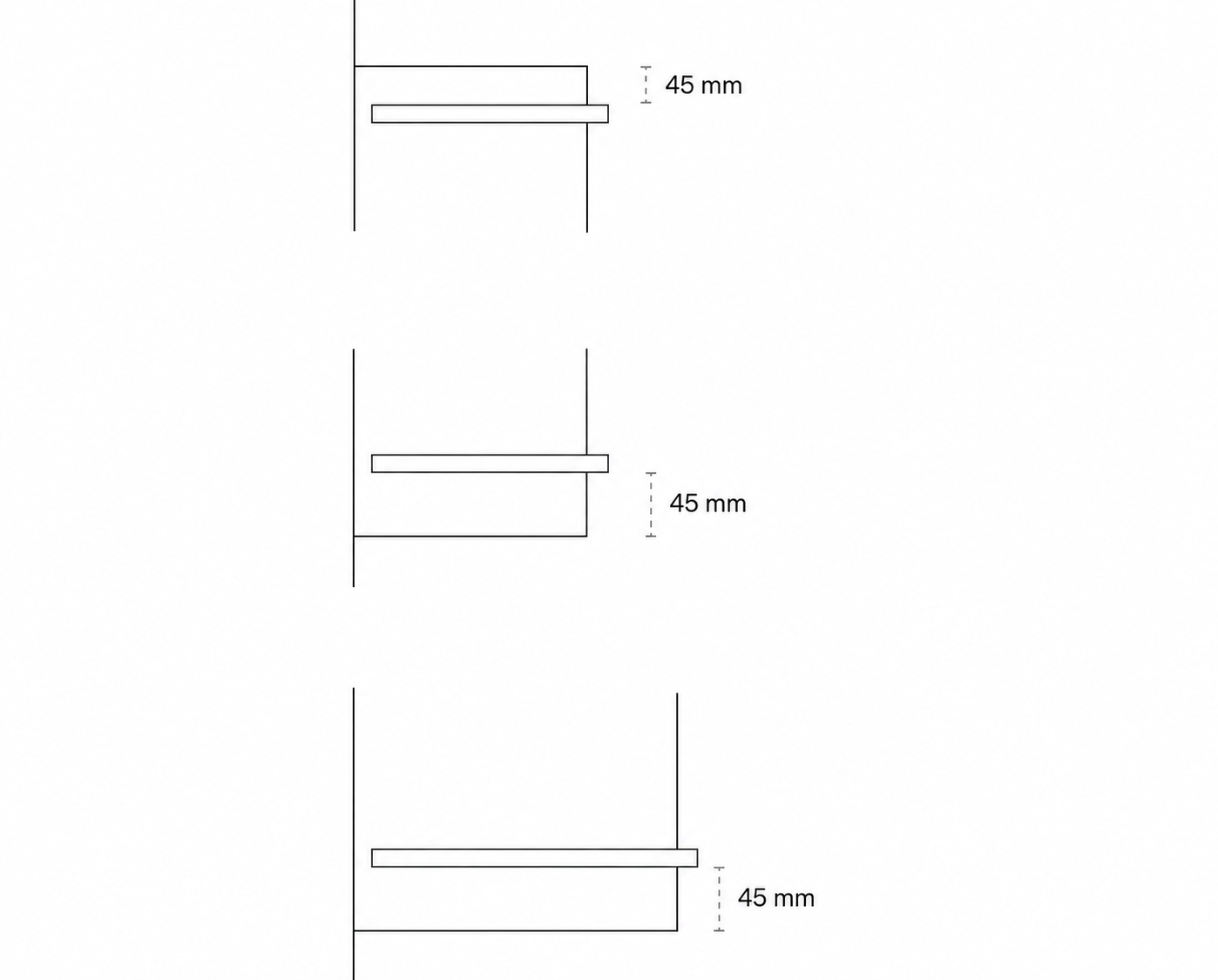

Peg above shelf: 4.5 cm.
Peg below shelf: 4.5 cm.
Peg below shelf, extra depth: 6.5 cm.
Side peg: approx. 2 cm.

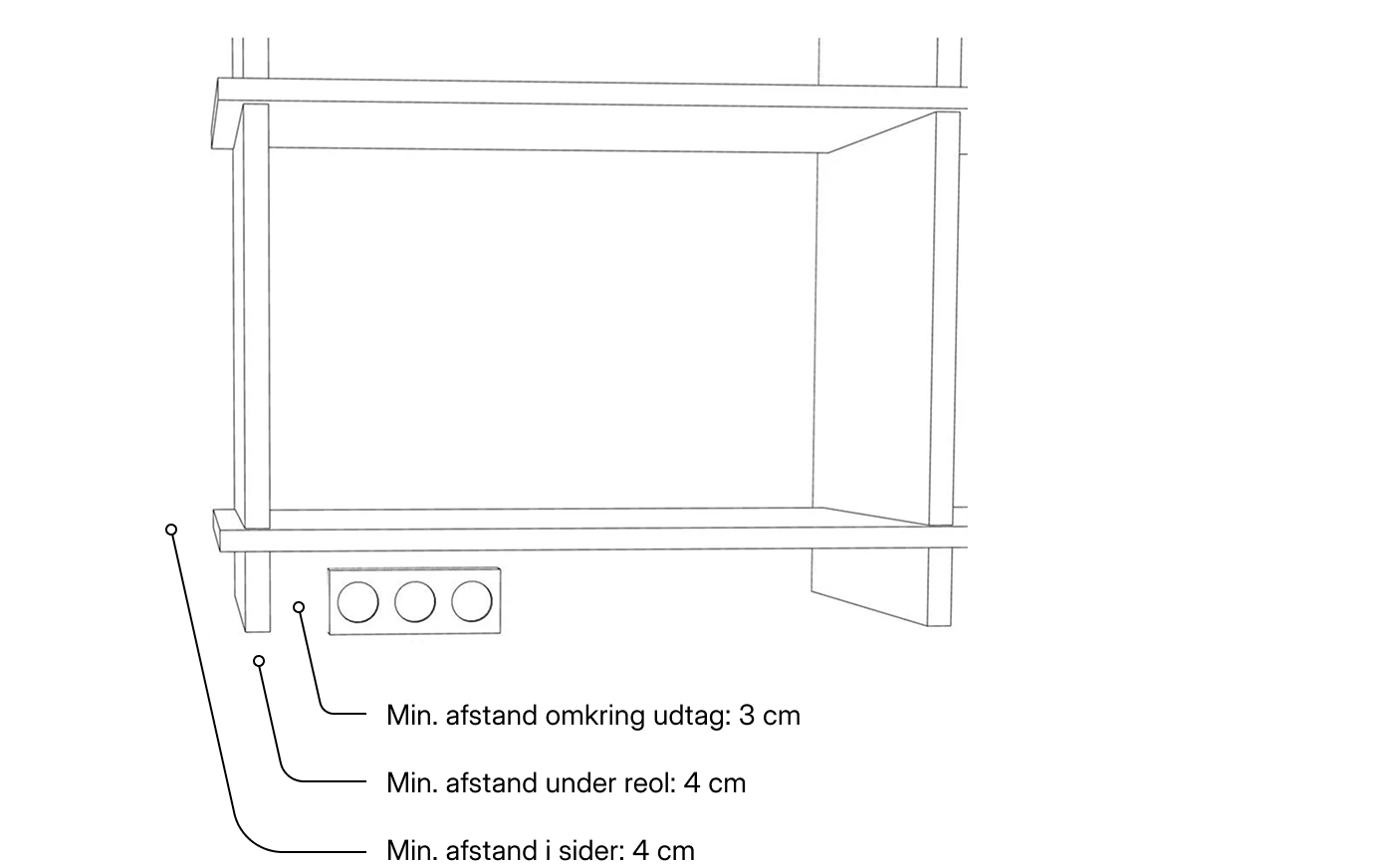

Reolreol is a wall-mounted system. Therefore, tolerances are required around the shelving system: Bottom: 4 cm.
Top: 4 cm
Side: 4 cm (recommended 8–12 cm).
Around wall sockets: 3 cm.

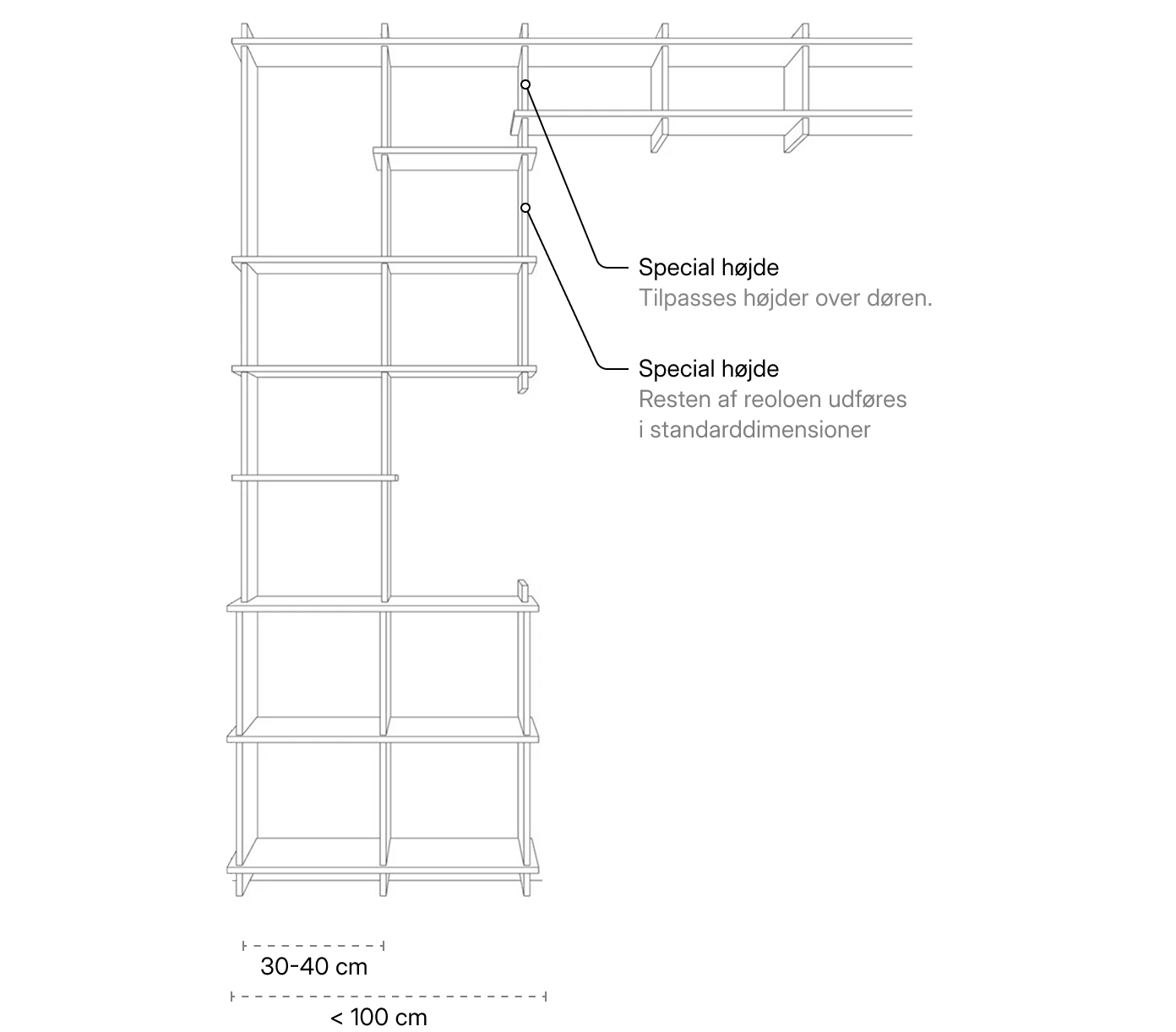

The area above a door can be customised to a specific height.
Minimum shelf height: 13cm
For wall areas narrower than 100 cm, narrower compartment widths can be made.
Minimum width: 30 cm.
An additional charge will apply.
